1/4 Inch High-Flow Barbed Inline Check Valve Nylon body with Viton disk
• Product Series: MPV
• Body Material: Nylon
• Diaghphram Material: 0.030" Viton
• Minimum Order Quantity: 100pcs
• Leak Decay Tested: 100%, each piece tested
• Flow Tested: Yes, Batch/Lot Tested
• Lot control: Yes
• Laser Marking: Optional
100 to 999
1,000 to 4,999
5,000 to 9,999
10,000 to 49,999
50,000+
• Maximum Operating Temprature: 203.00ºF / 95.00ºC
• Minimum Operating Temprature: -30.00ºF / -34.44ºC
• Maximum Operating Pressure: 65 psi (air)
• Cracking Pressure: 0.0 psi (This valve is normally open)
• Required Sealing Back-Pressure: Less than 0.1 psi (tested in air)

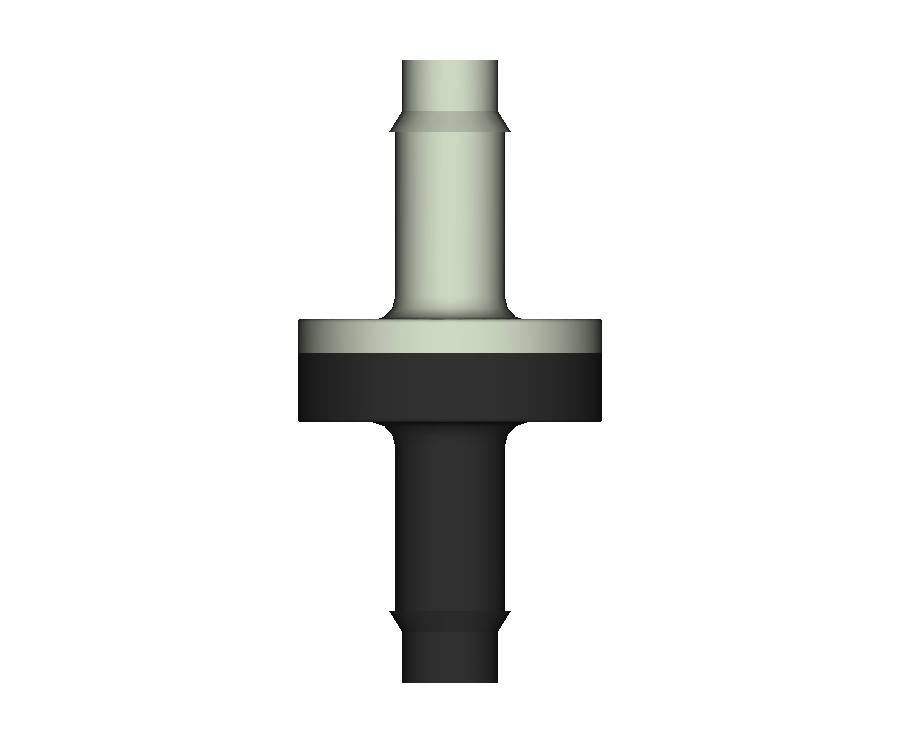

The MPV-4BH-NV Inline Check Valve is a diaphragm type inline check valve featuring a Natural Nylon 22HSP inlet and a Black Nylon 22HSP outlet with a 0.030" Viton diaphragm.
