1/8 Inch Barbed Inline Check Valve Cleanroom Polypropylene body with Kalrez disk
• Product Series: MPVC
• Body Material: Polypropylene
• Diaghphram Material: 0.030" Kalrez
• Minimum Order Quantity: 100pcs
• Leak Decay Tested: 100%, each piece tested
• Flow Tested: Yes, Batch/Lot Tested
• Lot control: Yes
• Laser Marking: No
100 to 999
1,000 to 4,999
5,000 to 9,999
10,000 to 49,999
50,000+
• Maximum Operating Temprature: 266.00ºF / 130.00ºC
• Minimum Operating Temprature: 14.00ºF / -10.00ºC
• Maximum Operating Pressure: 65 psi (air)
• Cracking Pressure: 0.0 psi (This valve is normally open)
• Required Sealing Back-Pressure: Less than 0.1 psi (tested in air)

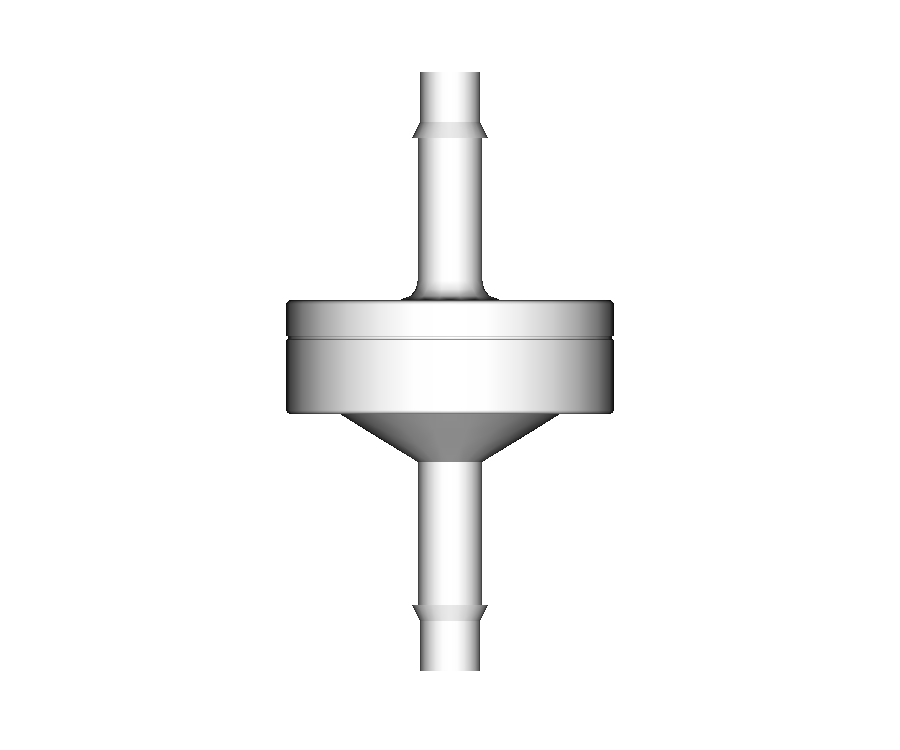

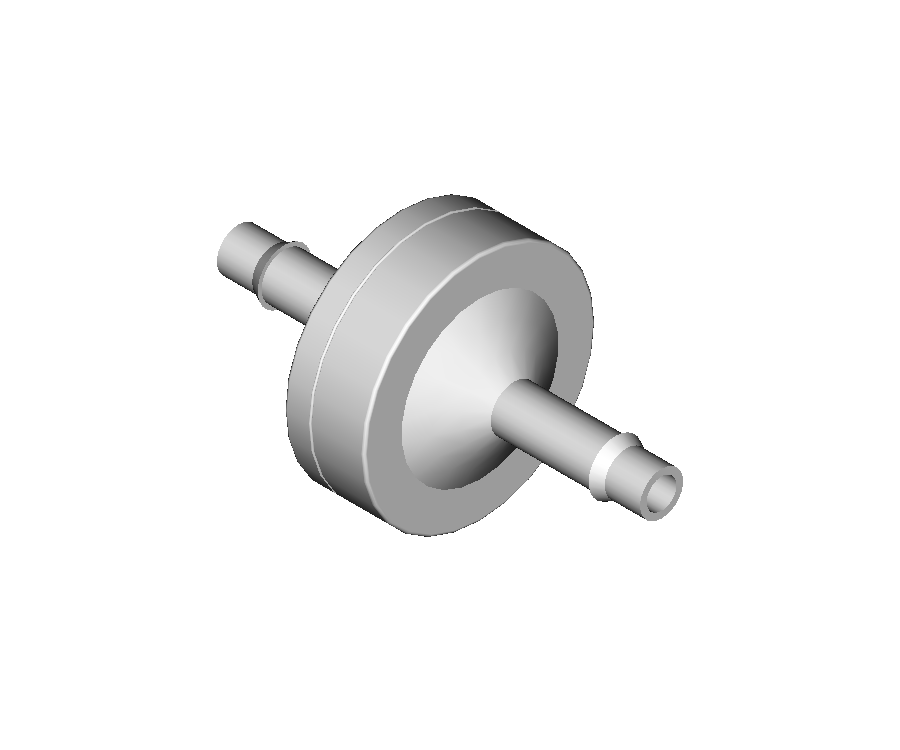

The MPVC-2B-P5K Inline Check Valve Cleanroom is a diaphragm type inline check valve featuring a Natural Polypropylene P5M6K inlet and a Natural Polypropylene P5M6K outlet with a 0.030" Kalrez diaphragm.
