5/16 Inch Barbed Inline Check Valve Cleanroom Acetal body with Silicone disk
• Product Series: MPVC
• Body Material: Acetal
• Diaghphram Material: 0.024" Silicone
• Minimum Order Quantity: 100pcs
• Leak Decay Tested: 100%, each piece tested
• Flow Tested: Yes, Batch/Lot Tested
• Lot control: Yes
• Laser Marking: No
100 to 999
1,000 to 4,999
5,000 to 9,999
10,000 to 49,999
50,000+
• Maximum Operating Temprature: 230.00ºF / 110.00ºC
• Minimum Operating Temprature: -40.00ºF / -40.00ºC
• Maximum Operating Pressure: 15 psi (air)
• Cracking Pressure: 0.0 psi (This valve is normally open)
• Required Sealing Back-Pressure: Less than 0.1 psi (tested in air)

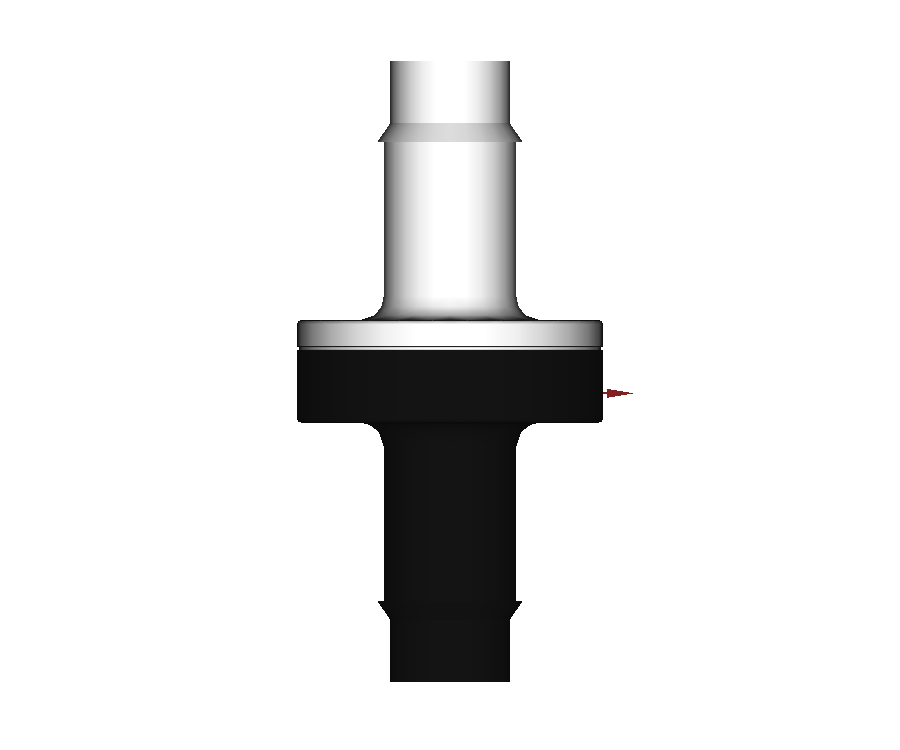

The MPVC-5B-AS Inline Check Valve Cleanroom is a diaphragm type inline check valve featuring a Natural Acetal Celcon M90 inlet and a Black Acetal Celcon M90 outlet with a 0.024" Silicone diaphragm.
